RZ/N1S Block Diagram

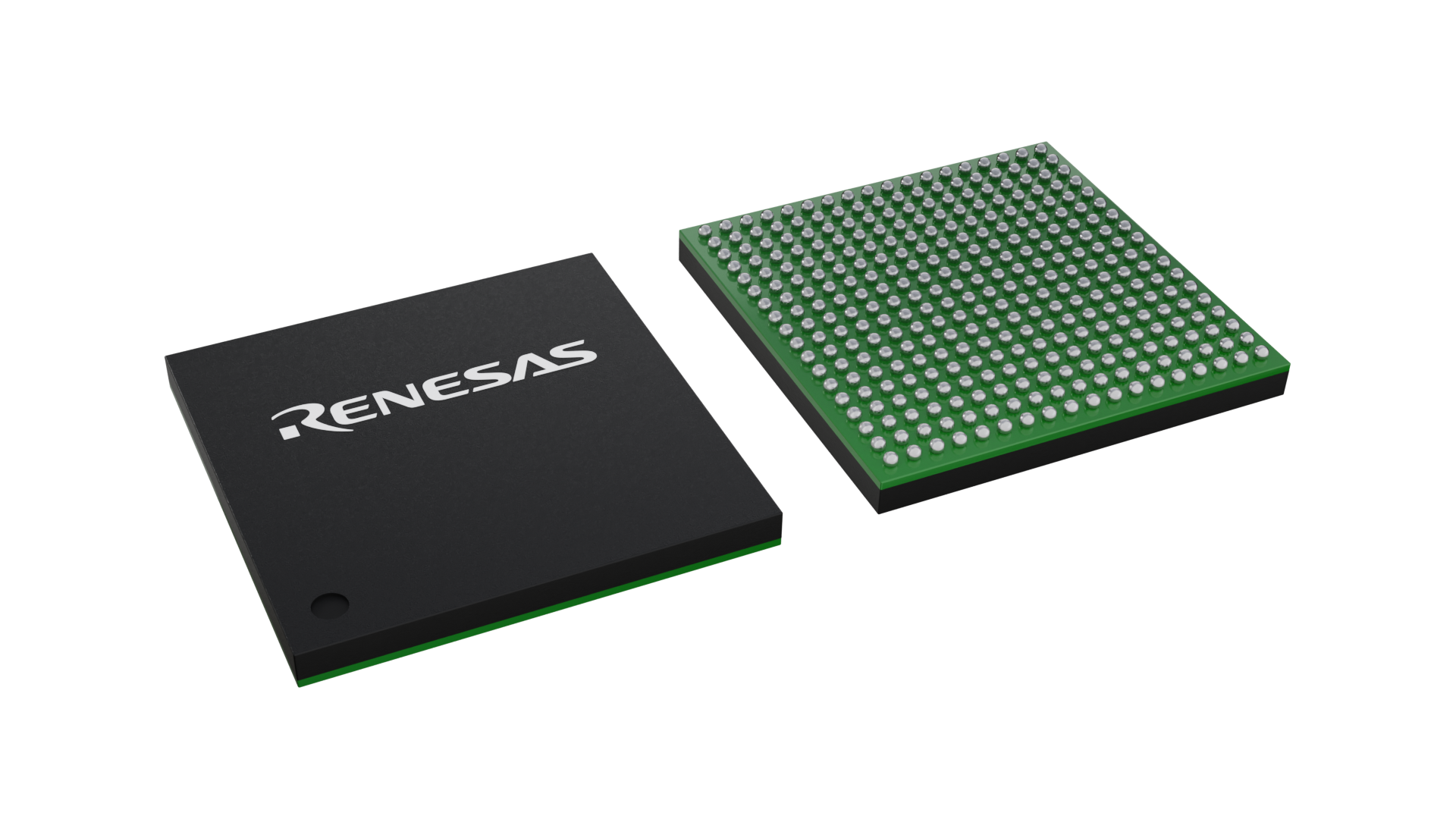

3D illustration featuring top and bottom of BGA IC chip package with 324 lead count.
RZ/N1S Block Diagram
3D illustration featuring top and bottom of BGA IC chip package with 324 lead count.

R9A06G033NGBG#AC1

Obsolete
Microprocessors Optimized for Small PLC and HMI; Reduces Peripheral Components and Adaptable for Gateway, Sensor Hub
RZ/N1D Group, RZ/N1S Group, RZ/N1L Group Datasheet Rev.1.30RZ/N1D Group, RZ/N1S Group, RZ/N1L Group User's Manual: System Introduction, Multiplexing, Electrical and Mechanical InformationLearn more about RZ/N1S

Package Information

CAD Model:View CAD Model
Pkg. Type:LFBGA
Pkg. Code:pkg_11874
Lead Count (#):324
Pkg. Dimensions (mm):15 x 15 x 1.7
Pitch (mm):0.8

Environmental & Export Classifications

Moisture Sensitivity Level (MSL)3
ECCN (US)3A991.a.2
HTS (US)8542.31.0050
RoHS (R9A06G033NGBG#AC1)EnglishJapanese
Pb (Lead) FreeYes

Product Attributes

Carrier TypeBulk (Tray)
Family NameRZ
Series NameRZ/N
Group NameN1S
CPU ArchitectureArm
Main CPUCortex-A7
Sub CPUCortex-M3
Floating Point UnitDouble/Single
Bit Length32
Program Memory (KB)0
Data Flash (KB)0
RAM (KB)6144
ECC SRAMYes
Lead Count (#)324
Pitch (mm)0.8
Pkg. Dimensions (mm)15 x 15 x 1.7
Number of Supply Voltage(s) (#)3
Supply Voltage (V)3 - 3.6
I/O Ports160
DMAC or DTCDMAC
DMA (ch)16
Temperature Sensor (ch) (#)0
Power-On ResetNo
Watchdog Timer (ch)2
External Memory Bus (bit)8,16
DRAM I/FDDR2-500/DDR3-1000
NPUNo
3D GPUNo
AcceleratorR-IN Engine
MOQ1
Temp. Range (°C)Tj = -40 to +110
External Interrupt Pins (#)8
LVD or PVDNo
Operating Freq (Max) (MHz)500
Operating Freq of Sub CPU (Max)125
Sub-clock (32.768 kHz)No
On-chip OscillatorNo
Ethernet speed10M/100M/1G
Ethernet (ch)5
EtherCat (ch) (#)1
USB Ports (#)2
USB FS (host ch/device ch)( 2 / 1 )
USB HS (host ch/device ch)( 2 / 1 )
USB SS (host ch/device ch)( 0 / 0 )
PCI Express (generation and ch)No
SCI or UART (ch)8
SPI (ch)6
QSPI (ch)2
OSPI (ch)0
I2C (#)2
I3C (ch)0
CAN (ch)2
CAN-FD (ch)0
WirelessNo
IrDANo
LIN (#)0
SDHI (ch)2
High Resolution Output TimerNo
PWM Output (pin#)16
32-Bit Timer (ch)4
16-Bit Timer (ch) (#)12
8-Bit Timer (ch)0
Standby operable timerNo
Asynchronous General Purpose Timer / Interval Timer (ch)0
RTCYes
16-Bit A/D Converter (ch)0
14-Bit A/D Converter (ch)0
12-Bit A/D Converter (ch)8
10-Bit A/D Converter (ch)0
24-Bit Sigma-Delta A/D Converter (ch)0
16-Bit D/A Converter (ch)0
12-Bit D/A Converter (ch)0
10-Bit D/A Converter (ch) (#)0
8-Bit D/A Converter (ch)0
Analog Comparator (ch)0
OPAMP (ch) (#)0
PGA (ch)0
Capacitive Touch Sensing Unit (ch)0
Graphics LCD ControllerYes
MIPI Interfaces (DSI) (ch)0
MIPI Interfaces (CSI) (ch)0
Camera I/F (Parallel)No
Image CodecNo
2D Drawing EngineNo
Segment LCD ControllerNo
SSI (ch)0
Security & EncryptionNo
Debug InterfaceJTAG/SWD
RemarksIndustrial Ethernet
Moisture Sensitivity Level (MSL)3
Assembly LocationJAPAN
Wafer Fab LocationJAPAN
12-Bit Timer (ch)0
32-Bit High Res Timer (ch)0
ADC12-bit x 8-ch
Asynchronous General Purpose Timer (ch)0
Bit Size32
CPUCortex-A7 x 1 + Cortex-M3 x 1
DMAYes
Delta-Sigma A/D ConverterNo
Ethernet10/100M/1G x 5 ch
Family NameRZ
Group NameN1S
High-Speed Analog Comparator (ch)0
Human Machine InterfaceDisplay Function
Lead CompliantYes
Length (mm)15
Low-Power Analog Comparator (ch)0
Pb (Lead) FreeYes
Pkg. TypeLFBGA
SPI (#)6
Suggested KitsYCONNECT-IT-RZN1S
Tape & ReelNo
Thickness (mm)1.7
Timer16-bit x 12-ch, 32-bit x 4-ch
UART (#)8
USBUSB2.0 x 2 ch (1H. 1H/F)
USBFS (ch)1
USBHS (ch)1
Width (mm)15

Description

RZ/N1S housed Cortex®-A7 and a large size of built-in RAM in a small package. Since peripheral parts can be reduced, it can be used for small PLC, HMI, etc. In addition, since it has a proven Renesas R-IN engine (“R-IN engine”) as an accelerator for industrial Ethernet communication, it can be used for protocol gateway, sensor hub, etc.

EOL Notice: Please refer to the document "End Of Life Notice [EOL260012-R1]" for the replacement part number. In terms of functions, package outline, quality, and reliability, the replacement part number is the same as the current part number. However, package thickness and coplanarity may differ.
