NEW
Package Information
| CAD Model: | View CAD Model |
| Pkg. Type: | WAFER |
| Pkg. Code: | DICEW |
| Lead Count (#): | |
| Pkg. Dimensions (mm): | 0.0 x 0.0 x 0.0 |
| Pitch (mm): |
Environmental & Export Classifications
| Moisture Sensitivity Level (MSL) | |
| Pb (Lead) Free | Yes |
| ECCN (US) | |
| HTS (US) |
Product Attributes
| Pkg. Type | WAFER |
| Lead Count (#) | 0 |
| Carrier Type | WFP |
| Pb (Lead) Free | Yes |
| Pb Free Category | e3 Sn |
| Temp. Range (°C) | -5 to 95°C |
| Country of Wafer Fabrication | USA |
| Application | 800G, 1.2T and beyond advanced multi-level QAM modulation |
| Channels (#) | 4 |
| Data Rate Max (Gbps) | 140 |
| Function | Linear Driver |
| MOQ | 70 |
| Output Type | Single-ended |
| Output Voltage (V) | 2V |
| Pkg. Dimensions (mm) | 0.0 x 0.0 x 0.0 |
| Price (USD) | $465.87414 |
| Qty. per Carrier (#) | 0 |
| Qty. per Reel (#) | 0 |
| Tape & Reel | No |
Resources for RRT75472
Description
The RRT75472 is a low-power, high-performance, quad-channel linear driver chip that is designed for 800G, 1.2T and beyond optical integrated transmitter small-form factor (SFF) modules for metro and long-haul applications.

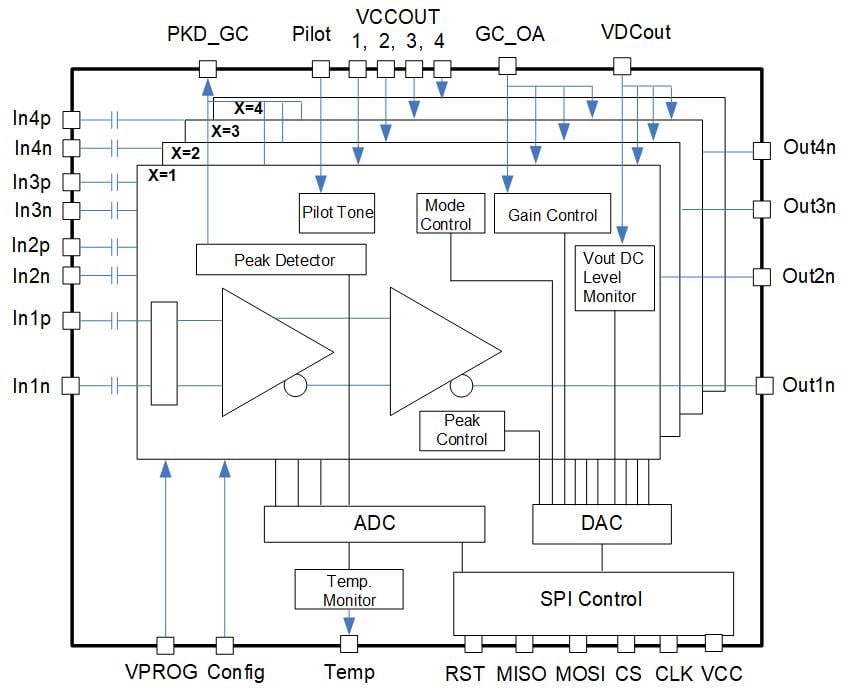

The device integrates quad-lanes of driver with serial peripheral interface (SPI) circuitry for DC controls and monitoring purposes on a single die. Each channel of driver has 100Ω differential AC-coupled input and a single-ended output with a back-terminated output stage. The output stage allows external AC-coupled interface with optical modulators having a wide characteristic impedance range from 30Ω to 50Ω. The linear output voltage of 2.0Vpps is suitable for the LiNbO3 optical modulators with multi-level QAM modulation.
