Package Information
| CAD Model: | View CAD Model |

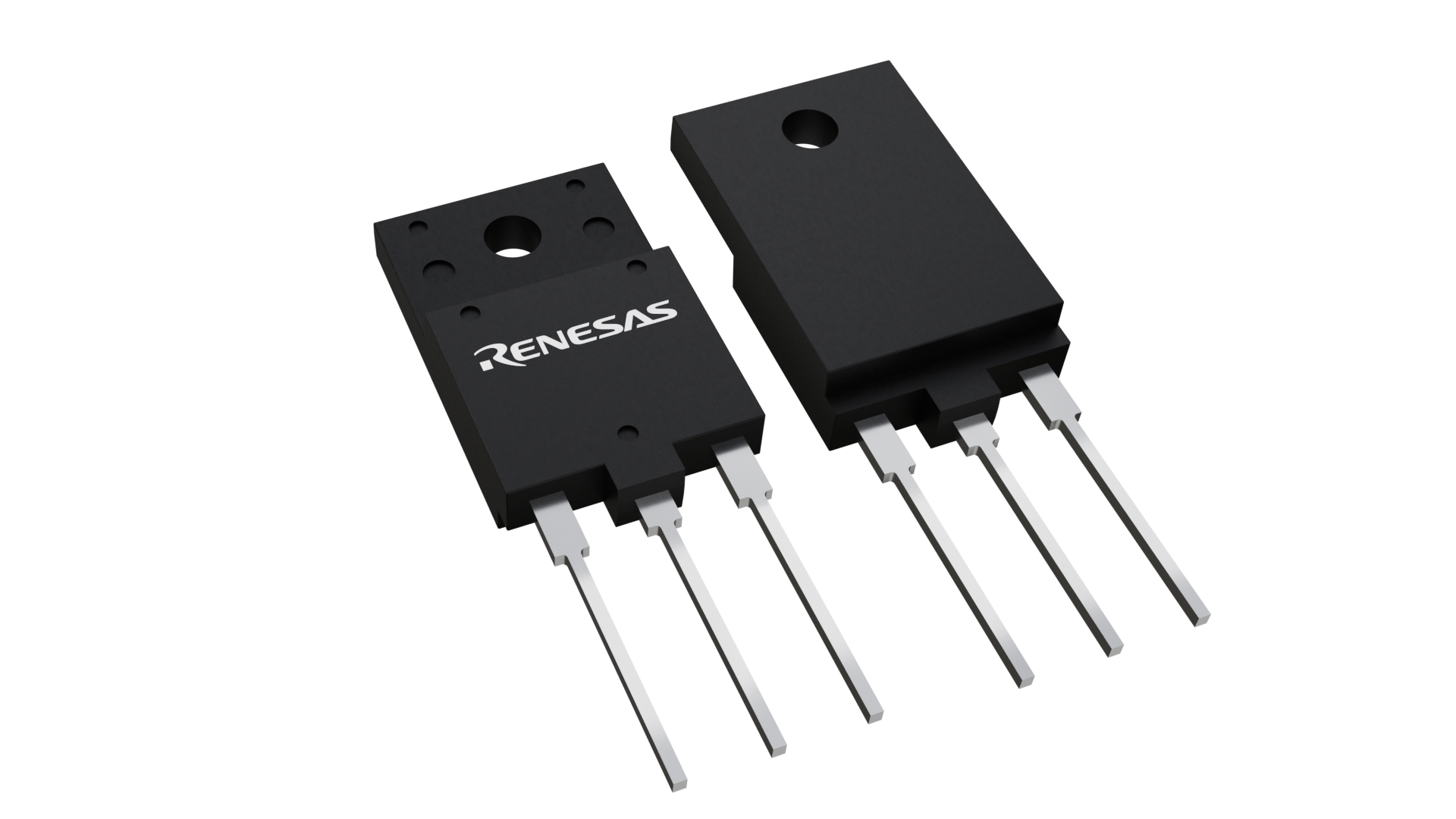

| Pkg. Type: | TO-3PF |
| Pkg. Code: | pkg_9315 |
| Lead Count (#): | 3 |
| Pkg. Dimensions (mm): | |
| Pitch (mm): |
Environmental & Export Classifications
| Pb (Lead) Free | Yes |
| RoHS (RJP60V0DPM-80#T2) | EnglishJapanese |
| Moisture Sensitivity Level (MSL) | |
| ECCN (US) | |
| HTS (US) |
Product Attributes
| Pkg. Type | TO-3PF |
| Lead Count (#) | 3 |
| Carrier Type | Tube |
| Pb (Lead) Free | Yes |
| Application | Inverter |
| Channels (#) | 1 |
| IC @100 °C (A) | 22 |
| IC @25 °C (A) | 45 |
| Ic (Peak) (A) | 90 |
| Lead Compliant | No |
| MOQ | 1 |
| Mounting Type | Through Hole |
| Pch (W) | 60 |
| Tape & Reel | No |
| VCE (sat) (V) | 1.5 |
| VCES (V) | 600 |
| tf (Typical) (µs) | 0.07 |
| tsc (μs) | 6 |
Resources for RJP60V0DPM-80
Description
Support is limited to customers who have already adopted these products.
IGBT product series for Power Factor Correction (PFC), UPS, solar power generation, and welding applications, recommended for 50 to 100 kHz frequencies, and not guaranteed against short circuit.
