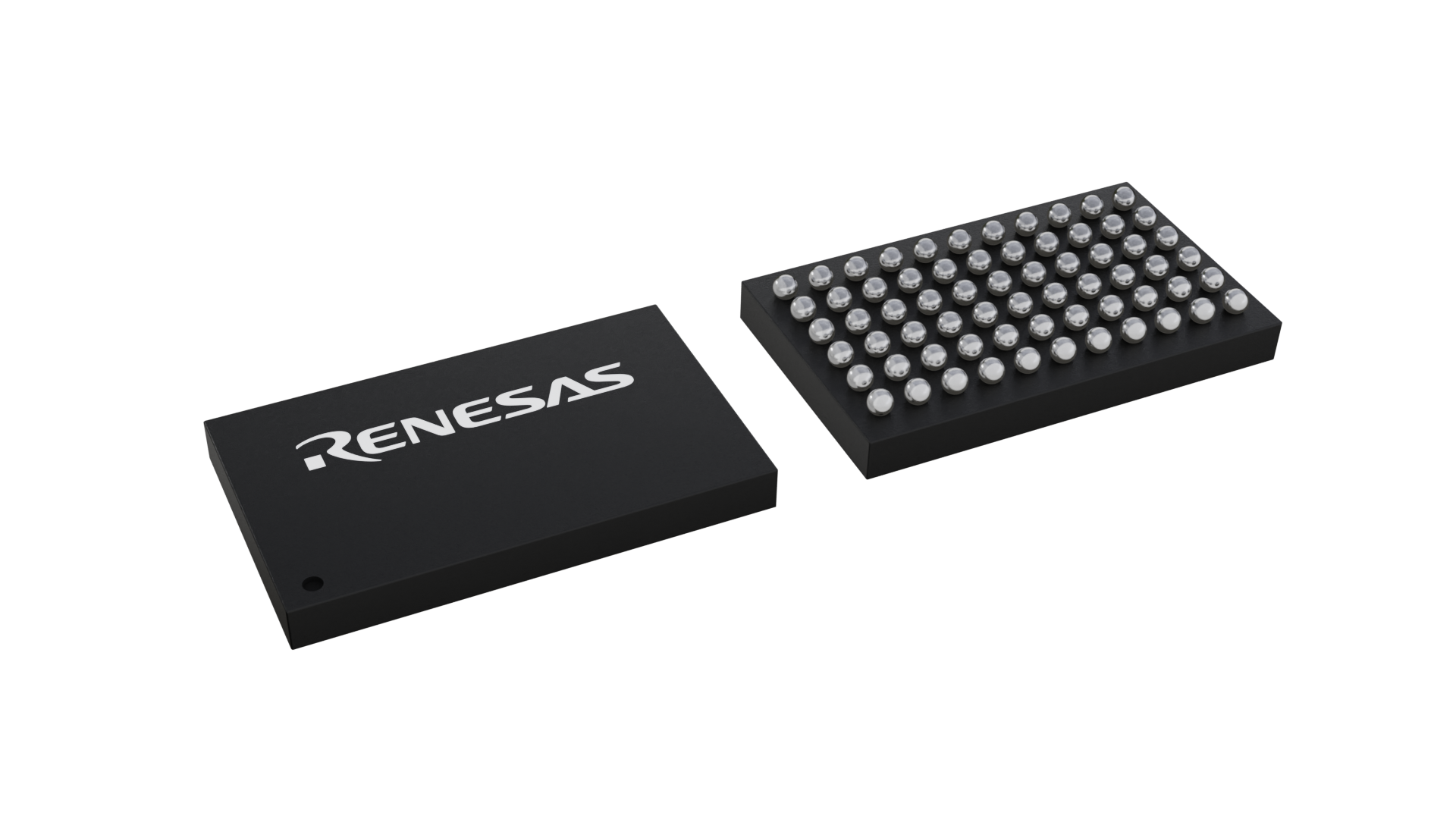

Package Information
| CAD Model: | View CAD Model |
| Pkg. Type: | LFBGA |
| Pkg. Code: | VPL |
| Lead Count (#): | 66 |
| Pkg. Dimensions (mm): | 4.5 x 7.5 x 1.07 |
| Pitch (mm): | 0.7 |
Environmental & Export Classifications
| Moisture Sensitivity Level (MSL) | 3 |
| Pb (Lead) Free | Yes |
| ECCN (US) | |
| HTS (US) |
Product Attributes
| Lead Count (#) | 66 |
| Carrier Type | Reel |
| Moisture Sensitivity Level (MSL) | 3 |
| Pb (Lead) Free | Yes |
| Pb Free Category | Pb-Free Ball Terminal (SAC-Q)-e6 |
| Battery Interface | No |
| Bus Voltage (Max) (V) | 5.5 |
| Comm. Interface | I2C & SPI |
| Country of Assembly | MALAYSIA, TAIWAN |
| Country of Wafer Fabrication | TAIWAN |
| Device Functions | Power supply, Functional Safety |
| Function | 11-ch PMIC |
| GPIOs (#) | 5 |
| Input Voltage (Max) (V) | 5.5 |
| Input Voltage (Min) (V) | 2.7 |
| Input Voltage Range (V) | 2.7 - 5.5 |
| Integrated Battery Charger | No |
| Integrated step-down DC/DC Converter Channels (#) | 11 |
| Length (mm) | 4.5 |
| Linear Output | Yes |
| MOQ | 3000 |
| Output Current Max (A) | 12 |
| Outputs (#) | 11 |
| Parametric Applications | Vehicle Computers, Communication Gateway, Domain Server, Application Server |
| Parametric Category | Multi-Channel Power Management ICs (PMICs) |
| Pitch (mm) | 0.7 |
| Pkg. Dimensions (mm) | 4.5 x 7.5 x 1.07 |
| Pkg. Type | LFBGA |
| Processor Name | R-CAR S4, V4H, V4M, |
| Processor Supplier | Renesas |
| Product Type | SoC |
| Qualification Level | Automotive |
| Step-up DC/DC converter Channels (#) | 1 |
| Supply Voltage (V) | 2.7 - 5.5 |
| Switching Frequency (MHz) | 2 - 2 |
| Target applications | Vehicle Computers, Communication Gateway, Domain Server, Application Server |
| Temp. Range (°C) | -40 to +105°C |
| Thickness (mm) | 1.07 |
| Total step-down DC/DC converter channels (#) | 11 |
| Tstg (Max) (°C) | 150 |
| Tstg (Min) (°C) | -65 |
| USB-Power Management | No |
| Width (mm) | 7.5 |
Resources for RAA271005
Description
The RAA271005 is a general purpose Power Management IC (PMIC) suitable for R-Car SoC series. It contains five DC/DC switching regulators and six low-drop out linear regulators (LDO). DCDC5 switching regulator can be configured to work in buck mode, or can be configured as a boost.
The RAA271005 PMIC supports low power operation, where three of the switching regulators (Buck3–Buck5) have been optimized to consume low quiescent current.
RAA271005 supports up to ASIL D functional safety, and includes an independent reference for monitoring of the output voltages, dual internal temperature monitors, challenge response watchdog timer, SoC and MCU error pin monitors, reset generator, a dedicated safety-control state machine, and safety shutdown path. An integrated 12-bit ADC monitors all input rails, output rails, internal temperature, and includes additional inputs to monitor external analog sources.
RAA271005 is available in a 6 × 11 BGA package, with 0.65mm pitch. The device is offered as AECQ100 Grade 1 operation, supporting an ambient temperature range of -40°C to +125°C.
See also the RAA271041. This product works together with the RAA271005 to support RCAR-S4.
