Package Information
| CAD Model: | View CAD Model |

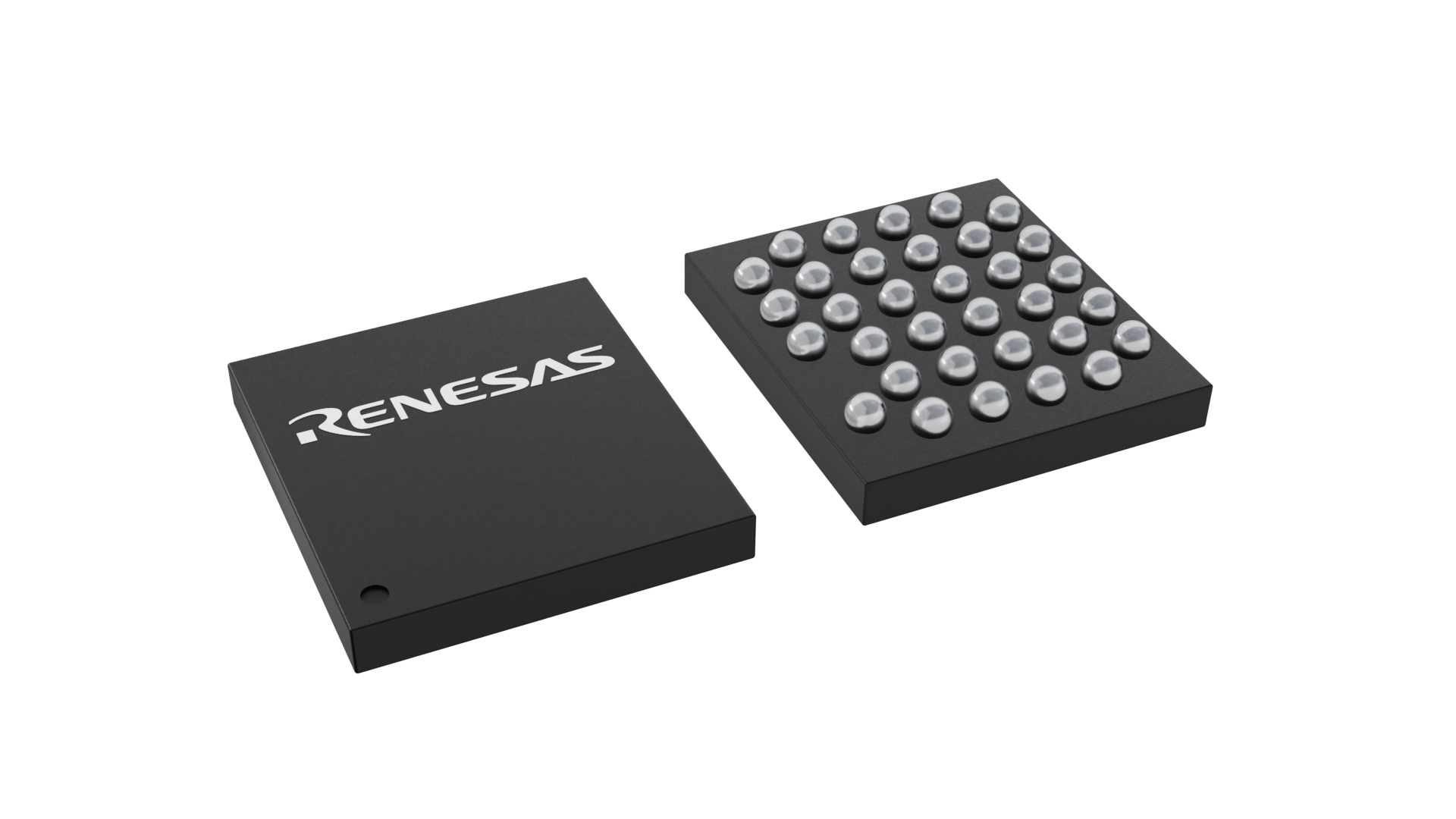

| Pkg. Type: | WLCSP |
| Pkg. Code: | WB0033AA |
| Lead Count (#): | 33 |
| Pkg. Dimensions (mm): | 2.67 x 2.42 x 0.58 |
| Pitch (mm): | 0.4 |
Environmental & Export Classifications
| Moisture Sensitivity Level (MSL) | 1 |
| Pb (Lead) Free | Yes |
| ECCN (US) | |
| HTS (US) |
Product Attributes
| Pkg. Type | WLCSP |
| Lead Count (#) | 33 |
| Carrier Type | Reel |
| Moisture Sensitivity Level (MSL) | 1 |
| Pb (Lead) Free | Yes |
| Length (mm) | 2.67 |
| MOQ | 4000 |
| Pb Free Category | e6 SnBi |
| Pitch (mm) | 0.4 |
| Pkg. Dimensions (mm) | 2.67 x 2.42 x 0.58 |
| Qty. per Carrier (#) | 0 |
| Qty. per Reel (#) | 2000 |
| Tape & Reel | Yes |
| Temp. Range (°C) | -40 to 105°C |
| Thickness (mm) | 0.58 |
| Width (mm) | 2.42 |
Resources for PTX205R
Description
The PTX205R is a highly integrated, mid-power NFC controller for NFC Forum applications, supporting reader/writer, card emulation, and peer-to-peer modes. Its patented Switched-Capacitor Power Amplifier (SCPA) architecture enables a sine-wave driver that simplifies system integration, supports compact antenna designs, and ensures best-in-class interoperability with existing NFC ecosystems. The modular NFC Soft Controller (NSC) architecture, combined with the advanced Split Stack software framework, enables the separation of time-critical operations, executed on the on-chip MCU, from high-level functionality running on the host controller. The result is a streamlined design that ensures real-time responsiveness while enabling implementation on cost-efficient host systems.
