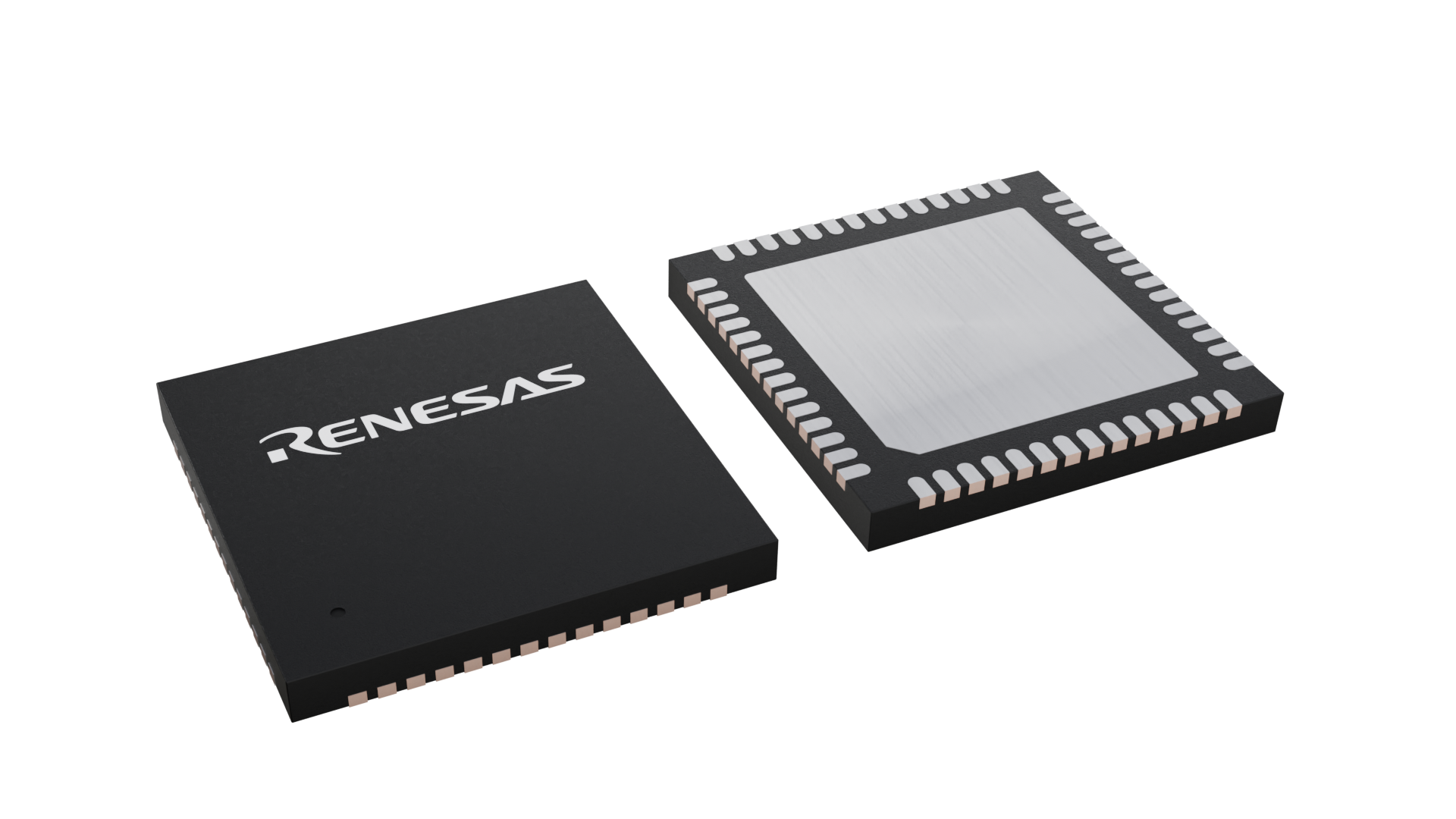

Package Information
| CAD Model: | View CAD Model |
| Pkg. Type: | VFQFPN |
| Pkg. Code: | QW0056AA |
| Lead Count (#): | 56 |
| Pkg. Dimensions (mm): | 7.0 x 0.75 x 0.75 |
| Pitch (mm): | 0.4 |
Environmental & Export Classifications
| Moisture Sensitivity Level (MSL) | 3 |
| Pb (Lead) Free | Yes |
| ECCN (US) | |
| HTS (US) |
Product Attributes
| Pkg. Type | VFQFPN |
| Lead Count (#) | 56 |
| Carrier Type | Reel |
| Moisture Sensitivity Level (MSL) | 3 |
| Pb (Lead) Free | Yes |
| Application | IoT and PoS |
| Comm. Interface | SPI, I2C, UART |
| Country of Assembly | CHINA |
| Country of Wafer Fabrication | TAIWAN |
| Device Functions | NFC Reader for POS |
| Length (mm) | 7 |
| Longevity | 2038 Jul |
| MOQ | 3000 |
| Output Power Max (W) | 2 |
| Pb Free Category | e3 Sn |
| Pitch (mm) | 0.4 |
| Pkg. Dimensions (mm) | 7.0 x 0.75 x 0.75 |
| Price (USD) | $2.52052 |
| Protocol | ISO/IEC 14443 A/B, ISO/IEC 18092, FeliCa™, ISO/IEC 15693 |
| Published | No |
| Qty. per Carrier (#) | 0 |
| Qty. per Reel (#) | 3000 |
| Software Support | OS, NON-OS |
| Tape & Reel | Yes |
| Temp. Range (°C) | -40 to 85°C |
| Thickness (mm) | 0.75 |
| Width (mm) | 0.75 |
| Wireless Standard | EMVCo PCD L1, NFC Forum Reader/Writer |
Resources for PTX100R
Description
The PTX100R NFC reader serves IoT and Point-of-Sale (PoS) applications, implementing a unique sine wave hardware transceiver architecture and offering a winning combination of superior transmit power and sensitivity, accurate wave shaping, and a reduced bill-of-materials compared to conventional square-wave NFC controllers – products which have changed little over the past decade.
The PTX100R marks a breakthrough in NFC system performance, power and integration simplicity.
This NFC reader IC is fully compliant with the specifications of the latest EMVCo 3.0/3.1 standard for contactless payments. It is supplied with an application-ready EMVCo 3.0/3.1 L1 interface and includes a set of facilities that makes the integration of a third-party EMV L2 stack fast and easy. It also provides rich debugging capabilities allowing for rapid prototyping.
Benefit from our patented Direct Antenna Connection (DiRAC™) technology which enables the NFC to drive output power of up to 2W directly to the antenna while achieving a sensitivity of -80dB.
