Package Information
| Pkg. Type: | TQFN |
| Pkg. Code: | LVJ |
| Lead Count (#): | 20 |
| Pkg. Dimensions (mm): | 4.0 x 3.0 x 0.75 |
| Pitch (mm): | 0.5 |
Environmental & Export Classifications
| Moisture Sensitivity Level (MSL) | 3 |
| Pb (Lead) Free | Yes |
| ECCN (US) | EAR99 |
| HTS (US) | 8542.39.0090 |
| RoHS (ISL98607IRTZR5622) | Download |
Product Attributes
| Lead Count (#) | 20 |
| Carrier Type | Tube |
| Moisture Sensitivity Level (MSL) | 3 |
| Pb (Lead) Free | Yes |
| Pb Free Category | Pb-Free 100% Matte Tin Plate w/Anneal-e3 |
| Temp. Range (°C) | -40 to +85°C |
| Advanced Features | Over/Under voltage, Over Current protection and Over temp protection |
| Boost Current Limit (A) | 1.4 |
| Input Voltage (Max) (V) | 4.8 |
| Input Voltage (Min) (V) | 2.8 |
| Input Voltage Range (V) | 2.8 - 4.4 |
| Length (mm) | 4 |
| Logic Voltage (Max) | 5.5 V |
| Logic Voltage (Min) | 1.1 V |
| MOQ | 6000 |
| Off Voltage (Min) (V) | -5.7 |
| On Voltage (Max) (V) | 5.5 - 5.5 |
| On Voltage Range (V) | 5 - 5.7 |
| Pitch (mm) | 0.5 |
| Pkg. Dimensions (mm) | 4.0 x 3.0 x 0.75 |
| Pkg. Type | TQFN |
| Qualification Level | Standard |
| Thickness (mm) | 0.75 |
| VBOOST (V) | 5.65 - 6 |
| VLOGIC | 1.1 to 5 |
| VOFF/VN | -5.7 to -5 |
| Width (mm) | 3 |
Resources for ISL98607R5622

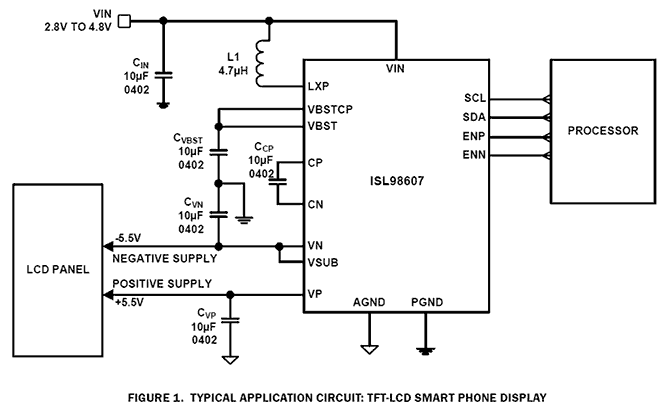

Description
