Package Information
| CAD Model: | View CAD Model |
| Pkg. Type: | TSSOP |
| Pkg. Code: | MPF |
| Lead Count (#): | 14 |
| Pkg. Dimensions (mm): | 5.0 x 4.4 x 0.90 |
| Pitch (mm): | 0.7 |
Environmental & Export Classifications
| RoHS (ISL70100SLHMVZ) | Download |
| Moisture Sensitivity Level (MSL) | 3 |
| Pb (Lead) Free | Yes |
| ECCN (US) | |
| HTS (US) |
Product Attributes
| Supply Voltage (min) (V) | 2.7 - 2.7 |
| Supply Voltage (max) (V) | 40 - 40 |
| Gain Accuracy (V/V) | 1 |
| Voltage Offset (typ) (µV) | 10 |
| TID LDR (krad(Si)) | 75 |
| DSEE (MeV·cm2/mg) | 86.4 |
| Pkg. Type | TSSOP |
| Lead Count (#) | 14 |
| Carrier Type | Tray |
| Common Mode Input Range (V) | -0.3 - 40 |
| Die Sale Availability? | No |
| Flow | RH Plastic |
| Length (mm) | 5 |
| MOQ | 25 |
| Moisture Sensitivity Level (MSL) | 3 |
| PROTO Availability? | No |
| Pb (Lead) Free | Yes |
| Pb Free Category | Nickel/Palladium/Gold-Silver - e4 |
| Pitch (mm) | 0.7 |
| Pkg. Dimensions (mm) | 5.0 x 4.4 x 0.90 |
| Qualification Level | Class P |
| Rating | Space |
| Temp. Range (°C) | -55 to +125°C |
| Thickness (mm) | 0.9 |
| Transconductance (typ) (µA/mV) | 2 |
| Width (mm) | 4.4 |
Resources for ISL70100SLH

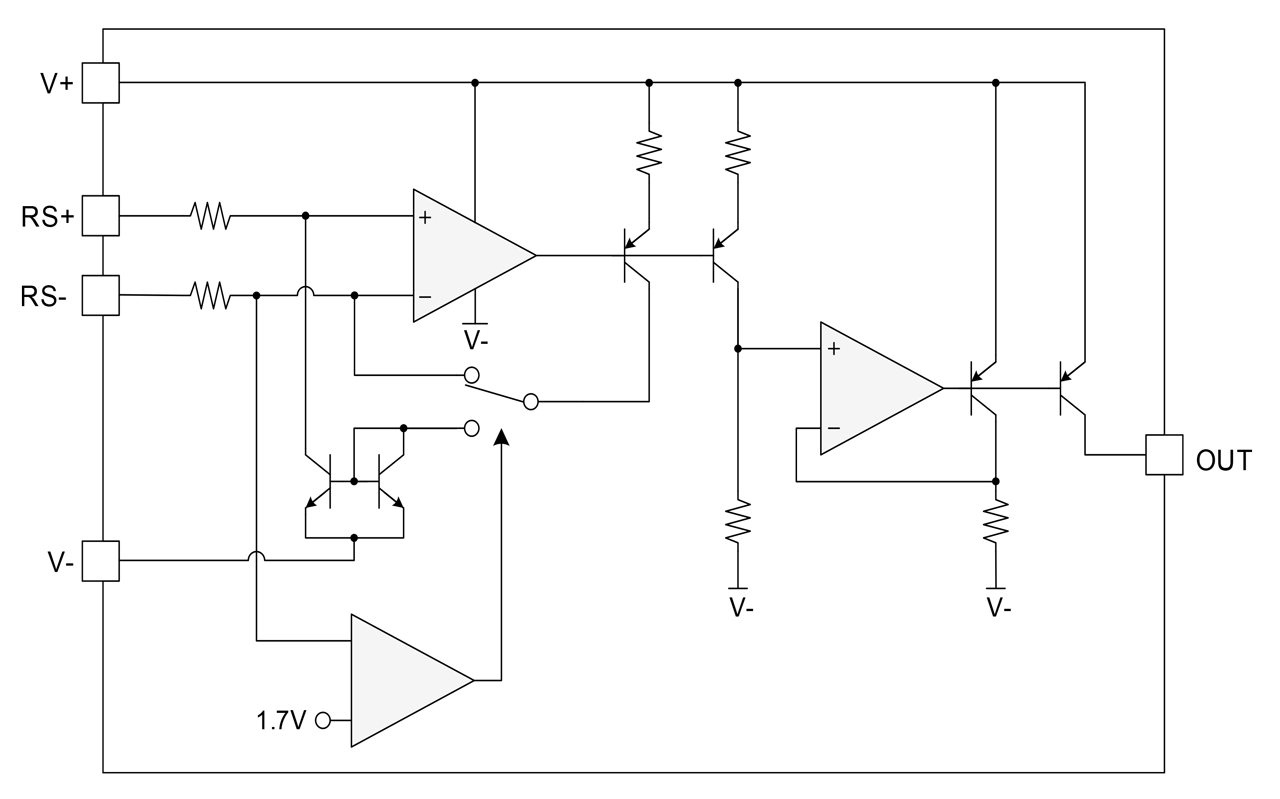

Description
The ISL70100SLH is a radiation hardened 40V current sense amplifier built on the Renesas proprietary PR40 Silicon-on-Insulator (SOI) process. The device has a wide power supply range of 2.7V to 40V. The input common-mode voltage is independent of the supply voltage and extends from -0.3V to 40.0V, making it ideal to use in both high-side and low-side applications.
The ISL70100SLH is a transconductance amplifier that monitors current using an external sense resistor and outputs a current proportional to the sensed voltage. The overall voltage gain is adjustable with a single resistor from the output to ground.
The amplifier has an extremely low offset voltage and input bias currents, making it ideal for precision sensing applications. It has a minimum bandwidth of 500kHz with a slew rate of 500µA/µs that makes it useful for current feedback in telemetry applications. When the part is powered down (V+ = V- = 0V), the sense pins (RS+, RS-) are high impedance to avoid loading the monitored circuit.
The part is available in a plastic 14Ld TSSOP package. It operates across the temperature range of -55°C to +125°C.
