Package Information
| CAD Model: | View CAD Model |
| Pkg. Type: | Module |
| Pkg. Code: | |
| Lead Count (#): | 45 |
| Pkg. Dimensions (mm): | 18 x 14.5 x 2.5 |
| Pitch (mm): | 1.5 |
Environmental & Export Classifications
| RoHS (DA14592MOD-01000002) | EnglishJapanese |
| Moisture Sensitivity Level (MSL) | 3 |
| Pb (Lead) Free | Yes |
| ECCN (US) | |
| HTS (US) |
Product Attributes
| Pkg. Type | Module |
| Lead Count (#) | 45 |
| Carrier Type | Tape & Reel |
| Temp. Range (°C) | -40 to +85°C |
| Country of Assembly | Taiwan |
| 2Mbps | Supported |
| ADC | 15-bit x 8-ch, 10-bit x 8-ch |
| AoA | TX Supported |
| AoD | TX Supported |
| Application | Crowd-sourced location tracking, Asset tracking, Connected health, HID, Metering, PoS, Beacons, AoA, AoD, IoT, Medical, Proximity tags & trackers, RCU |
| Bluetooth® Mesh | Not Supported |
| CPU | M33 & M0+ |
| Clock Rate (MHz) | 64 |
| Execute from FLASH | Yes |
| Extended Advertising | Supported |
| External Rails and Load Capacity | None |
| Flash Memory (KB) | 256KB |
| Flexible System Clock | Yes |
| GATT Caching | Not Supported |
| GPIOs (#) | 32 |
| Hardware Crypto Engine | Yes |
| I2C (#) | 1 |
| Integrated Battery Charger | No |
| Integrated DCDC | Integrated Buck DC-DC converter |
| LE Coded PHY (Long Range) | Not Supported |
| LE Data Length Extensions | Supported |
| MOQ | 700 |
| Memory Size (OTP) (KB) | 2 |
| Moisture Sensitivity Level (MSL) | 3 |
| Output Power Range (dBm) | -23 - 5.5 |
| Pb (Lead) Free | Yes |
| Periodic Advertising | Not Supported |
| Pitch (mm) | 1.5 |
| Pkg. Dimensions (mm) | 18 x 14.5 x 2.5 |
| Price (USD) | $6.41517 |
| Proprietary 2G4 protocol | Yes |
| QSPI Interface (#) | 1 |
| Qty. per Reel (#) | 700 |
| RAM (KB) | 96KB |
| ROM (KB) | 288 |
| Recommended for new Designs | Yes |
| Rx current (mA) | 1.2 |
| SPI (#) | 1 |
| Sensitivity (dBm) (dBm) | -97 |
| Supply Voltage Vcc Range | 1.7-3.6 |
| Tx Current (mA) | 2.3 |
| UART (#) | 2 |
| USB Ports (#) | 0 |
| Wireless Standard | BLE 5.2 Core specification |
Resources for DA14592MOD
Description

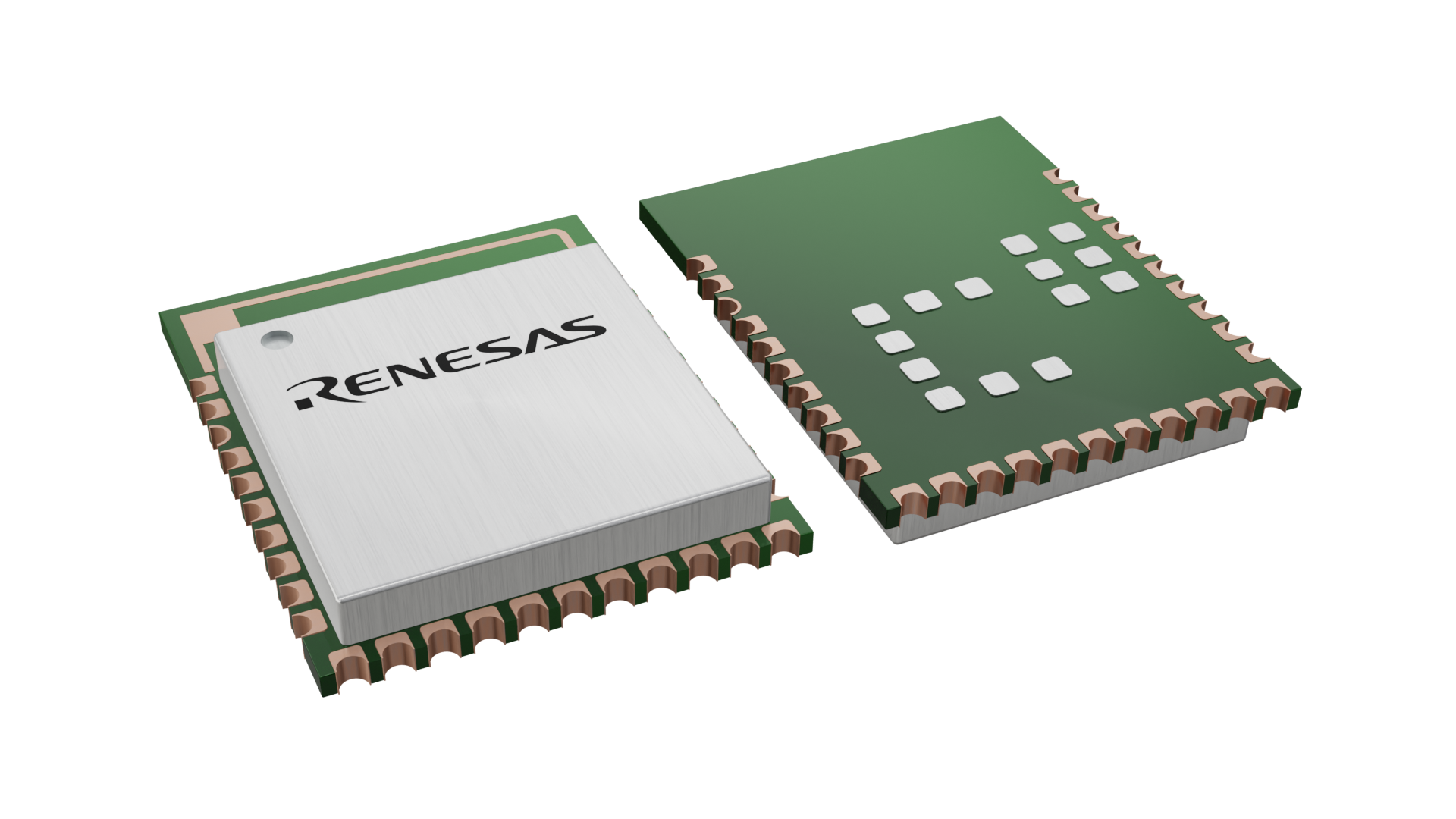

The DA14592MOD is based on the DA14592 Bluetooth® Low Energy 5.2 system-on-chip (SoC) and brings out all its hardware features and capabilities. The module integrates all passives and the antenna, and is supported by user-friendly software. The DA14592MOD targets broad market use and is certified across regions, providing significant reductions in development cost, risk, and time-to-market. A variety of standard and advanced peripherals enable interaction with other system components and the development of advanced user interfaces and feature-rich applications.
The DA14592 is a multi-core wireless microcontroller, combining the latest Arm® Cortex®-M33™ application processor with a floating-point unit, advanced power management functionality, a cryptographic security engine, analog and digital peripherals, and a software-configurable protocol engine with a radio that is compliant with the Bluetooth 5.2 Low Energy standard. It includes 256kB of embedded Flash and 96kB of RAM.
