Low Voltage, LVCMOS/Crystal-to-LVPECL /ECL Clock Generator

Package Information

Pkg. Type: TQFP
Pkg. Code: PPG52
Lead Count (#): 52
Pkg. Dimensions (mm): 10.0 x 10.0 x 1.4
Pitch (mm): 0.65

Environmental & Export Classifications

Pb (Lead) Free Yes
ECCN (US) EAR99
HTS (US) 8542.39.0090
Moisture Sensitivity Level (MSL) 3

Product Attributes

Pkg. Type TQFP
Lead Count (#) 52
Pb (Lead) Free Yes
Carrier Type Tray
Advanced Features Feedback Input
C-C Jitter Typ P-P (ps) 50
Core Voltage (V) 3.3
Feedback Input Yes
Input Freq (MHz) 10 - 25
Input Type Crystal
Inputs (#) 1
Length (mm) 10
MOQ 160
Moisture Sensitivity Level (MSL) 3
Output Banks (#) 4
Output Freq Range (MHz) 400
Output Skew (ps) 250
Output Type LVPECL
Output Voltage (V) 3.3
Outputs (#) 13
Package Area (mm²) 100
Pb Free Category e3 Sn
Pitch (mm) 0.65
Pkg. Dimensions (mm) 10.0 x 10.0 x 1.4
Prog. Clock No
Published No
Qty. per Carrier (#) 160
Qty. per Reel (#) 0
Requires Terms and Conditions Does not require acceptance of Terms and Conditions
Tape & Reel No
Temp. Range (°C) 0 to 70°C
Thickness (mm) 1.4
Width (mm) 10

Description

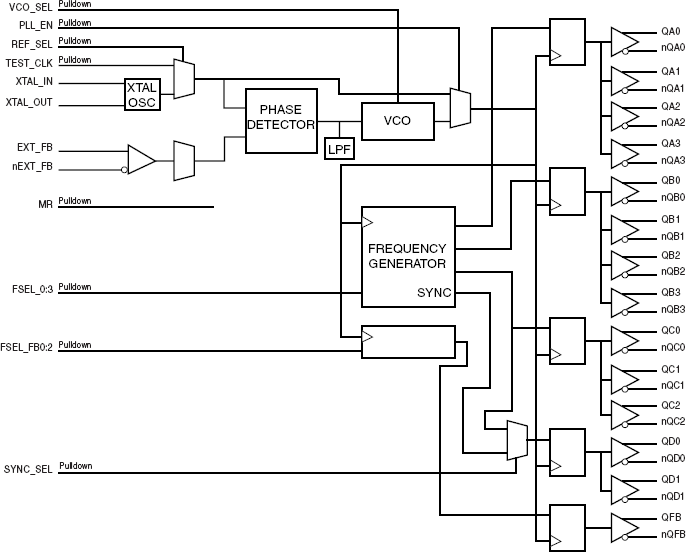

The 873990 is a low voltage, low skew, 3.3V LVPECL/ ECL Clock Generator. The 873990 has two selectable clock inputs. The XTAL1 and XTAL2 are used to interface to a crystal and the TEST_CLK pin can accept a LVCMOS or LVTTL input. This device has a fully integrated PLL along with frequency configurable outputs. An external feedback input and output regenerates clocks with "zero delay". The four independent banks of outputs each have their own output dividers, which allow the device to generate a multitude of different bank frequency ratios and output-to-input frequency ratios. The output frequency range is 25MHz to 400MHz and the input frequency range is 6.25MHz to 125MHz. The PLL_SEL input can be used to bypass the PLL for test and system debug purposes. In bypass mode, the input clock is routed around the PLL and into the internal output dividers. The 873990 also has a SYNC output which can be used for system synchronization purposes. It monitors Bank A and Bank C outputs for coincident rising edges and signals a pulse per the timing diagrams in this data sheet. This feature is used primarily in applications where Bank A and Bank C are running at different frequencies, and is particularly useful when they are running at non-integer multiples of each other.
